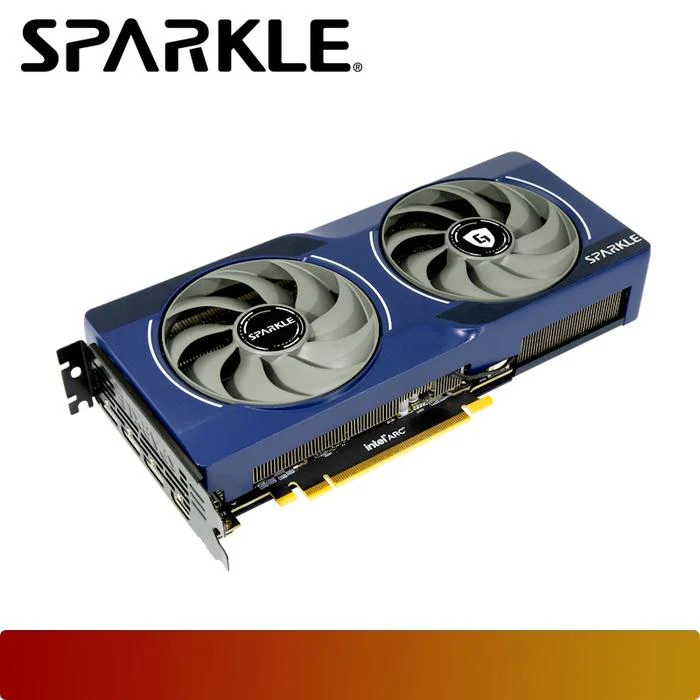

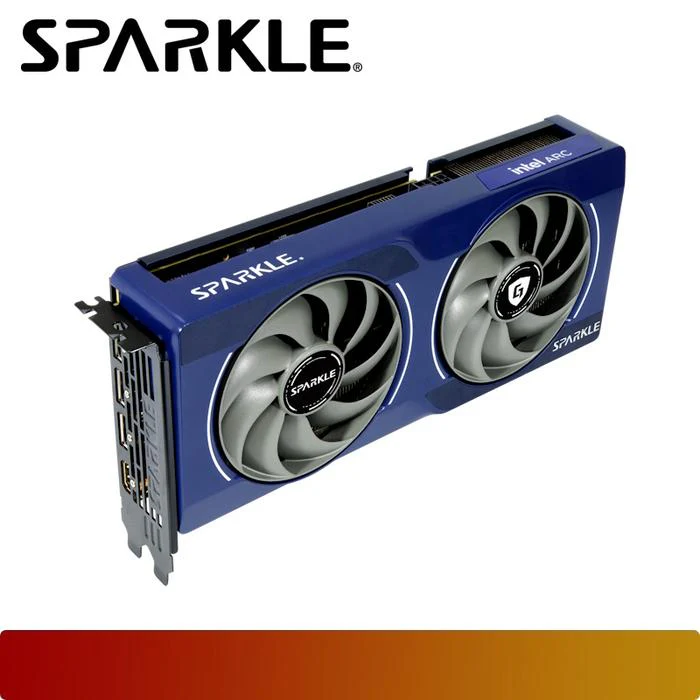

SPARKLE Intel Arc B570 GUARDIAN OC 10GB GDDR6
| SPARKLE B570 GUARDIAN OC TECHNICAL DETAILS | |
|---|---|
| Category | Detail |
| Boost Clock | 2660 MHz |
| Xe-Core / Ray Tracing Units | 18 |
| Intel XMX Engines | 144 |
| GPU Peak Tops (Int8) | 203 |
| Memory Size | 10GB GDDR6 |
| Graphics Memory Interface | 160-bit |
| Graphics Memory Bandwidth | 380 GB/s |

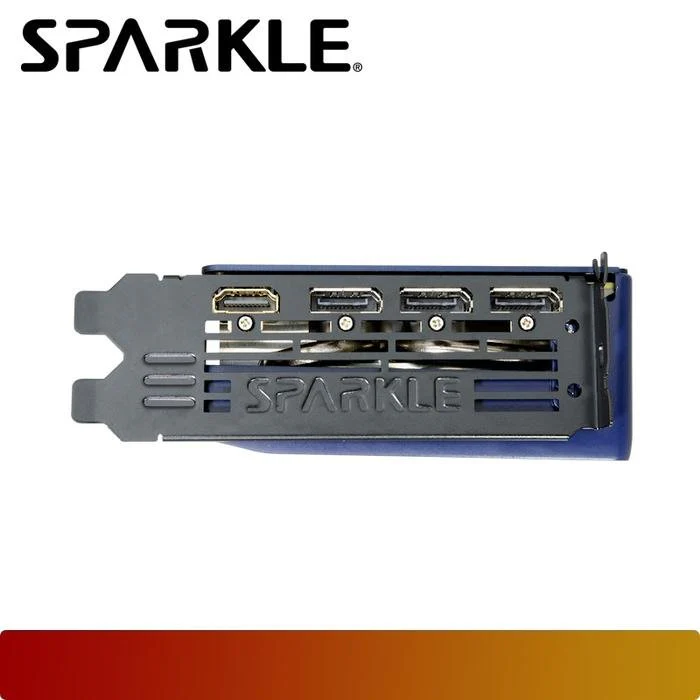

| Max Resolution (HDMI 2.1) | 7680 x 4320 120Hz |
| Max Resolution (3x DisplayPort 2.1) | 7680 x4320 60Hz |
| PCI Express Configurations | PCI Express 4.0 x8 |
| TBP (Total Board Power) | 170 Watt |
| Lighting | Blue Breathing Light |
| FEATURES, REQUIREMENTS, AND DIMENSIONS | |
|---|---|
| Key Feature | System Requirement / Dimension |
| Cooling: TORN Cooling 2.0 | Processor: 10th Gen IntelŽ Core⢠/ AMD Ryzen⢠3000 Series or newer |

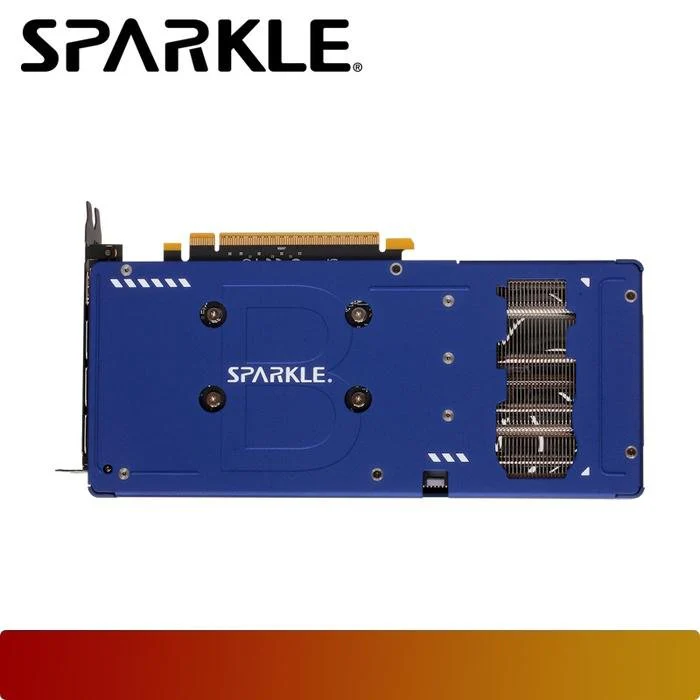

| Metal Backplate, Pre-Installed | Motherboard: Compatible with Resizable BAR / Smart Access Memory |
| Ray Tracing & Variable Rate Shading (VSR) | Slot: PCI-ExpressÂŽ compliant MB with one x16 PCIe slot |
| DirectX 12 Ultimate & Vulkan 1.3 | PSU: 600W or greater with 1x8-pin PCIe connector |
| OpenGL 4.6 & OpenCL 3.0 | RAM: 8GB minimum, 16GB recommended |
| Adaptive Sync | OS: WindowsÂŽ 11 or WindowsÂŽ 10 64-bit |
| AV1 Encode / Decode & VP9 Bitstream & Decoding | Dimension: 242x105x44mm |
| Intel Deep Link Hyper Compute, Hyper Encode, Stream Assist | Weight / Width: 796 g / 2.2-Slot |
$79.63
Original: $265.44
-70%SPARKLE Intel Arc B570 GUARDIAN OC 10GB GDDR6â
$265.44
$79.63
Description
| SPARKLE B570 GUARDIAN OC TECHNICAL DETAILS | |
|---|---|
| Category | Detail |
| Boost Clock | 2660 MHz |
| Xe-Core / Ray Tracing Units | 18 |
| Intel XMX Engines | 144 |
| GPU Peak Tops (Int8) | 203 |
| Memory Size | 10GB GDDR6 |
| Graphics Memory Interface | 160-bit |
| Graphics Memory Bandwidth | 380 GB/s |
| Max Resolution (HDMI 2.1) | 7680 x 4320 120Hz |
| Max Resolution (3x DisplayPort 2.1) | 7680 x4320 60Hz |
| PCI Express Configurations | PCI Express 4.0 x8 |
| TBP (Total Board Power) | 170 Watt |
| Lighting | Blue Breathing Light |
| FEATURES, REQUIREMENTS, AND DIMENSIONS | |
|---|---|
| Key Feature | System Requirement / Dimension |
| Cooling: TORN Cooling 2.0 | Processor: 10th Gen IntelŽ Core⢠/ AMD Ryzen⢠3000 Series or newer |
| Metal Backplate, Pre-Installed | Motherboard: Compatible with Resizable BAR / Smart Access Memory |
| Ray Tracing & Variable Rate Shading (VSR) | Slot: PCI-ExpressÂŽ compliant MB with one x16 PCIe slot |
| DirectX 12 Ultimate & Vulkan 1.3 | PSU: 600W or greater with 1x8-pin PCIe connector |
| OpenGL 4.6 & OpenCL 3.0 | RAM: 8GB minimum, 16GB recommended |
| Adaptive Sync | OS: WindowsÂŽ 11 or WindowsÂŽ 10 64-bit |
| AV1 Encode / Decode & VP9 Bitstream & Decoding | Dimension: 242x105x44mm |
| Intel Deep Link Hyper Compute, Hyper Encode, Stream Assist | Weight / Width: 796 g / 2.2-Slot |
