GIGABYTE X870I AORUS PRO ICE

GIGABYTE X870I AORUS PRO ICE

Chipset AMD X870 Chipset
CPU Socket AMD AM5 Socket (Supports AMD Ryzenâ„¢ 8000 Series/7000 Series Processors)
Form Factor Mini-ITX (17.0cm x 17.0cm)
Memory (DDR5)
  1. 2 x DDR5 DIMM sockets, Dual Channel memory architecture
  2. Memory Speed Support: DDR5 up to 8000+ (O.C.) MT/s
  3. Supports non-ECC Un-buffered DIMM and AMD EXPO™ Technology / Intel® XMP
  4. Max. capacity of system memory: 96 GB
Onboard Graphics
  1. 1x HDMI port (Max 4096x2160@60 Hz)
  2. 1x DisplayPort (Max 5120x2880@60 Hz)

*Requires a Ryzenâ„¢ Processor with integrated graphics (iGPU).
Expansion Slots
  1. 1x PCI Express x16 slot (**PCIe 5.0**, running at x16)
Audio Realtek® Audio CODEC (ALC1220-VB), 7.1-Channel High Definition Audio, Supports S/PDIF Out
Storage
  1. 2x M.2 slots total: 1x M.2 (**PCIe 5.0** x4) + 1x M.2 (PCIe 4.0 x4)
  2. 2x SATA 6Gb/s ports
Networking
  1. LAN: Realtek® **2.5GbE** LAN chip
  2. Wireless/Bluetooth: Wi-Fi 7 (802.11be) & **BLUETOOTH 5.3**
RAID Support Supports RAID 0, RAID 1, and RAID 10 for NVMe SSD and RAID 0, RAID 1 for SATA storage devices.
USB Ports

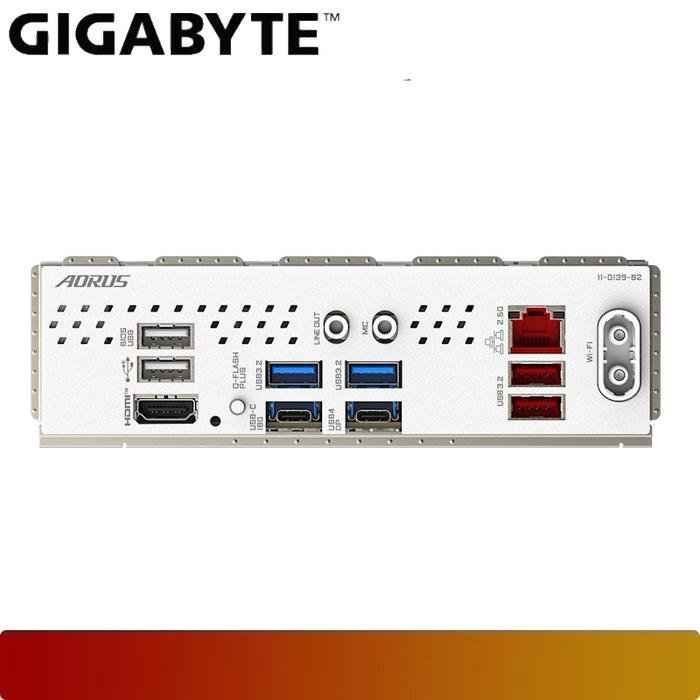

  1. Rear Panel: 1x **USB 3.2 Gen 2x2** Type-C® (20Gbps), 3x USB 3.2 Gen 2 Type-A (10Gbps), 4x USB 3.2 Gen 1 Type-A (5Gbps)
  2. Internal Headers: 1x **USB 3.2 Gen 2 Type-C® header**, 1x USB 3.2 Gen 1 header (supports 2 ports), 1x USB 2.0/1.1 header (supports 2 ports)
DIY Features Q-Flash Plus Button, EZ-Latch Plus (PCIe & M.2), H/W Monitoring, Integrated I/O Shield
Operating System Supports Windows 11 64-bit
$368.10
GIGABYTE X870I AORUS PRO ICE—
$368.10
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

Description

Chipset AMD X870 Chipset
CPU Socket AMD AM5 Socket (Supports AMD Ryzenâ„¢ 8000 Series/7000 Series Processors)
Form Factor Mini-ITX (17.0cm x 17.0cm)
Memory (DDR5)
  1. 2 x DDR5 DIMM sockets, Dual Channel memory architecture
  2. Memory Speed Support: DDR5 up to 8000+ (O.C.) MT/s
  3. Supports non-ECC Un-buffered DIMM and AMD EXPO™ Technology / Intel® XMP
  4. Max. capacity of system memory: 96 GB
Onboard Graphics
  1. 1x HDMI port (Max 4096x2160@60 Hz)
  2. 1x DisplayPort (Max 5120x2880@60 Hz)

*Requires a Ryzenâ„¢ Processor with integrated graphics (iGPU).
Expansion Slots
  1. 1x PCI Express x16 slot (**PCIe 5.0**, running at x16)
Audio Realtek® Audio CODEC (ALC1220-VB), 7.1-Channel High Definition Audio, Supports S/PDIF Out
Storage
  1. 2x M.2 slots total: 1x M.2 (**PCIe 5.0** x4) + 1x M.2 (PCIe 4.0 x4)
  2. 2x SATA 6Gb/s ports
Networking
  1. LAN: Realtek® **2.5GbE** LAN chip
  2. Wireless/Bluetooth: Wi-Fi 7 (802.11be) & **BLUETOOTH 5.3**
RAID Support Supports RAID 0, RAID 1, and RAID 10 for NVMe SSD and RAID 0, RAID 1 for SATA storage devices.
USB Ports
  1. Rear Panel: 1x **USB 3.2 Gen 2x2** Type-C® (20Gbps), 3x USB 3.2 Gen 2 Type-A (10Gbps), 4x USB 3.2 Gen 1 Type-A (5Gbps)
  2. Internal Headers: 1x **USB 3.2 Gen 2 Type-C® header**, 1x USB 3.2 Gen 1 header (supports 2 ports), 1x USB 2.0/1.1 header (supports 2 ports)
DIY Features Q-Flash Plus Button, EZ-Latch Plus (PCIe & M.2), H/W Monitoring, Integrated I/O Shield
Operating System Supports Windows 11 64-bit
